1201AA080045
ModelM6X8X45
dNominal Diameter · mmM6
lLength · mm45
d0Drill Diameter · mm8
hnomNominal Anchorage Depth · mm35
tfixFixture Thickness (max) · mm10
Anchors & Fixings

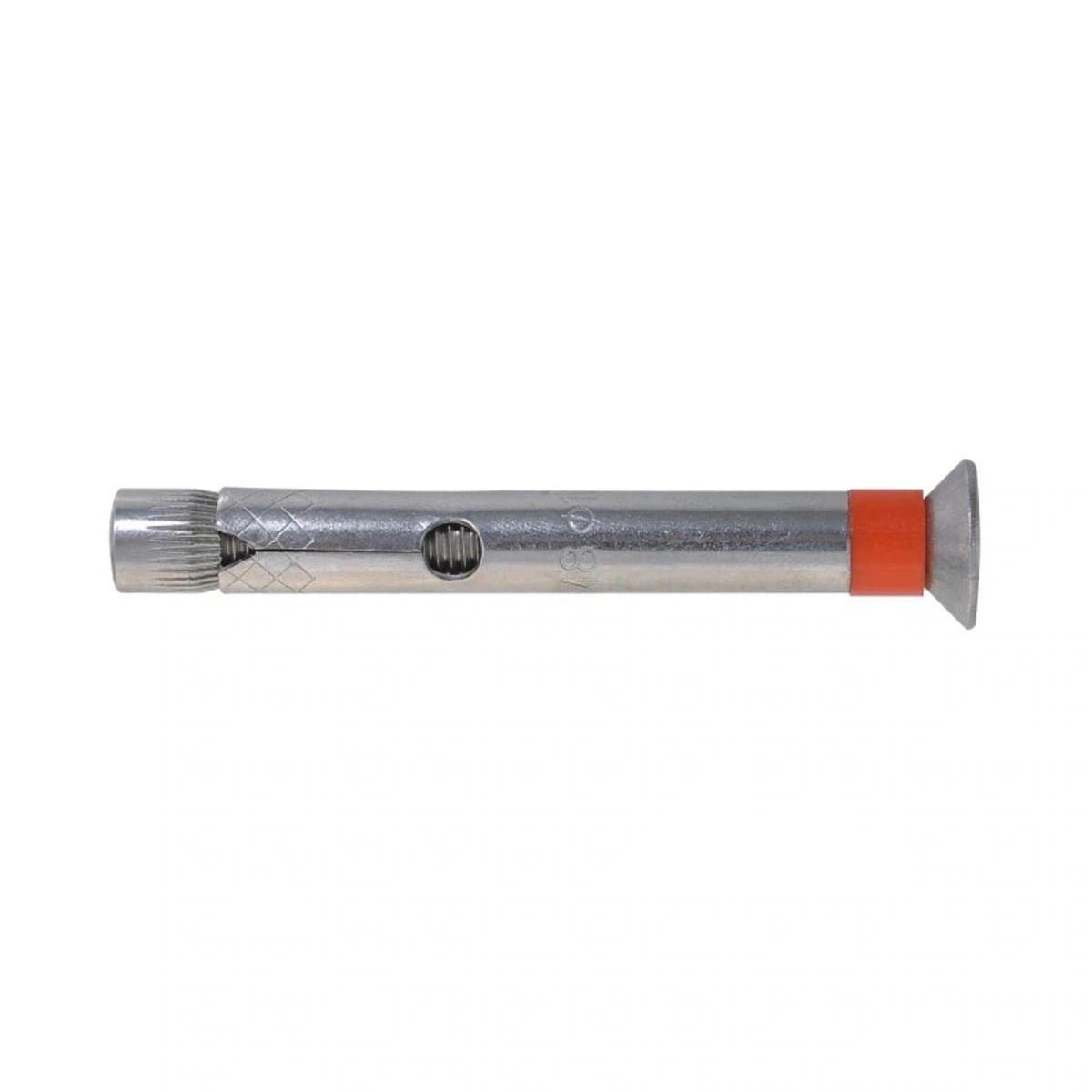

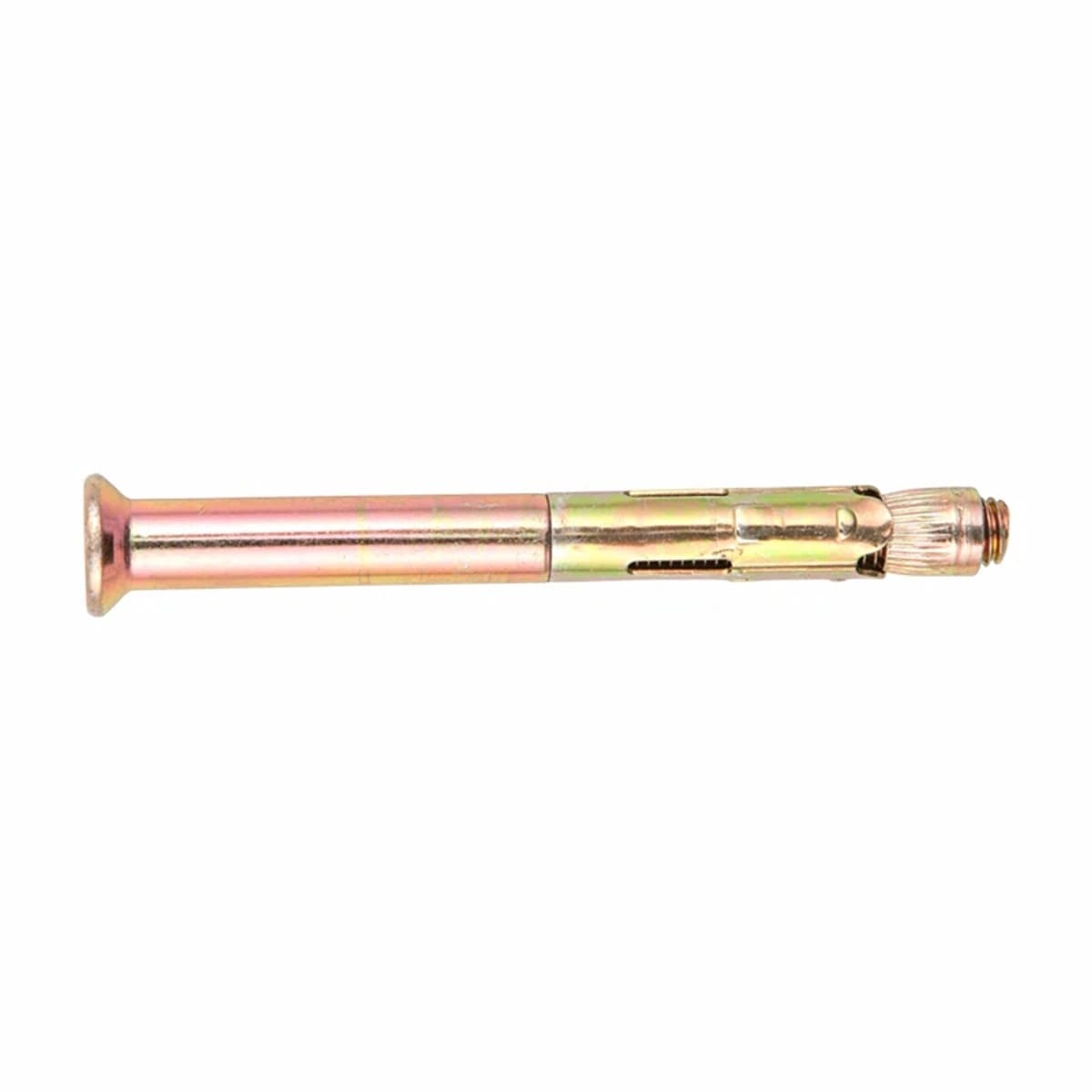

Countersunk Head Sleeve Anchor with Plastic Ring
M6–M16 · Carbon Steel
● Available for quotation
- Material
- Carbon Steel
Share
Available options
Material
17 sizes
| Part number | Model | dNominal Diameter · mm | lLength · mm | d0Drill Diameter · mm | hnomNominal Anchorage Depth · mm | tfixFixture Thickness (max) · mm | Quantity and inquiry |
|---|---|---|---|---|---|---|---|
| 1201AA080045 | M6X8X45 | M6 | 45 | 8 | 35 | 10 | |
| 1201AA080060 | M6X8X60 | M6 | 60 | 8 | 35 | 25 | |
| 1201AA090045 | M6X9X45 | M6 | 45 | 9 | 35 | 10 | |
| 1201AA090060 | M6X9X60 | M6 | 60 | 9 | 35 | 25 | |
| 1201AA100060 | M8X10X60 | M8 | 60 | 10 | 45 | 15 | |
| 1201AA100080 | M8X10X80 | M8 | 80 | 10 | 45 | 35 | |
| 1201AA110060 | M8X11X60 | M8 | 60 | 11 | 45 | 15 | |
| 1201AA110080 | M8X11X80 | M8 | 80 | 11 | 45 | 35 | |
| 1201AA120070 | M10X12X70 | M10 | 70 | 12 | 50 | 15 | |
| 1201AA120100 | M10X12X100 | M10 | 100 | 12 | 50 | 45 | |
| 1201AA140070 | M10X14X70 | M10 | 70 | 14 | 50 | 15 | |
| 1201AA140100 | M10X14X100 | M10 | 100 | 14 | 50 | 45 | |
| 1201AA160080 | M12X16X80 | M12 | 80 | 16 | 60 | 15 | |
| 1201AA160100 | M12X16X100 | M12 | 100 | 16 | 60 | 35 | |
| 1201AA160110 | M12X16X110 | M12 | 110 | 16 | 60 | 45 | |
| 1201AA200080 | M16X20X80 | M16 | 80 | 20 | 75 | 5 |
1201AA080060
ModelM6X8X60
dNominal Diameter · mmM6
lLength · mm60
d0Drill Diameter · mm8
hnomNominal Anchorage Depth · mm35
tfixFixture Thickness (max) · mm25
1201AA090045
ModelM6X9X45
dNominal Diameter · mmM6
lLength · mm45
d0Drill Diameter · mm9
hnomNominal Anchorage Depth · mm35
tfixFixture Thickness (max) · mm10
1201AA090060
ModelM6X9X60
dNominal Diameter · mmM6
lLength · mm60
d0Drill Diameter · mm9
hnomNominal Anchorage Depth · mm35
tfixFixture Thickness (max) · mm25
1201AA100060
ModelM8X10X60
dNominal Diameter · mmM8
lLength · mm60
d0Drill Diameter · mm10
hnomNominal Anchorage Depth · mm45
tfixFixture Thickness (max) · mm15
1201AA100080
ModelM8X10X80
dNominal Diameter · mmM8
lLength · mm80
d0Drill Diameter · mm10
hnomNominal Anchorage Depth · mm45
tfixFixture Thickness (max) · mm35
1201AA110060
ModelM8X11X60
dNominal Diameter · mmM8
lLength · mm60
d0Drill Diameter · mm11
hnomNominal Anchorage Depth · mm45
tfixFixture Thickness (max) · mm15
1201AA110080
ModelM8X11X80
dNominal Diameter · mmM8
lLength · mm80
d0Drill Diameter · mm11
hnomNominal Anchorage Depth · mm45
tfixFixture Thickness (max) · mm35
1201AA120070
ModelM10X12X70
dNominal Diameter · mmM10
lLength · mm70
d0Drill Diameter · mm12
hnomNominal Anchorage Depth · mm50
tfixFixture Thickness (max) · mm15
1201AA120100
ModelM10X12X100
dNominal Diameter · mmM10
lLength · mm100
d0Drill Diameter · mm12
hnomNominal Anchorage Depth · mm50
tfixFixture Thickness (max) · mm45
1201AA140070
ModelM10X14X70
dNominal Diameter · mmM10
lLength · mm70
d0Drill Diameter · mm14
hnomNominal Anchorage Depth · mm50
tfixFixture Thickness (max) · mm15
1201AA140100
ModelM10X14X100
dNominal Diameter · mmM10
lLength · mm100
d0Drill Diameter · mm14
hnomNominal Anchorage Depth · mm50
tfixFixture Thickness (max) · mm45
1201AA160080
ModelM12X16X80
dNominal Diameter · mmM12
lLength · mm80
d0Drill Diameter · mm16
hnomNominal Anchorage Depth · mm60
tfixFixture Thickness (max) · mm15
1201AA160100
ModelM12X16X100
dNominal Diameter · mmM12
lLength · mm100
d0Drill Diameter · mm16
hnomNominal Anchorage Depth · mm60
tfixFixture Thickness (max) · mm35
1201AA160110
ModelM12X16X110
dNominal Diameter · mmM12
lLength · mm110
d0Drill Diameter · mm16
hnomNominal Anchorage Depth · mm60
tfixFixture Thickness (max) · mm45
1201AA200080
ModelM16X20X80
dNominal Diameter · mmM16
lLength · mm80
d0Drill Diameter · mm20
hnomNominal Anchorage Depth · mm75
tfixFixture Thickness (max) · mm5
Product description
Countersunk Head Sleeve Anchor with Plastic Ring is listed as a metric factory-series product using the dimensions supplied in the customer's original XTANCHOR catalogue. The specification table preserves factory item codes where provided and separates product size from drilling and installation dimensions. No load rating, approval, coating or performance claim is inferred from the product photograph.
Key features
- Metric-only catalogue specifications
- Factory item codes retained where supplied
- Dimensions separated by engineering meaning
Applications
- Concrete, masonry and general construction fastening where the selected size and installation parameters are suitable.
Standard and order documents
The selected execution standard is the product basis. Published or order-specific documents are shown only when they have been confirmed for this product.
Order assurance
Available options; exact scope is fixed in the quotation or order.EN 10204 3.1 material certificate
Can be included when agreed in the order.
Dimensional inspection report
Can be provided for the agreed inspection scope.
Certificate of conformity
Can be issued against the confirmed order requirements.
Mechanical test report
Available when the required tests are agreed before production.
Chemical analysis report
Available when the material verification scope is agreed.
Batch and lot traceability
Batch or lot references can be recorded for the order; heat references are included only where applicable and available.
Bulk carton packing
Available subject to confirmed piece weight and shipping requirements.
Small boxes with outer cartons
Available when the box quantity and labels are agreed.
Palletized shipment
Available when pallet size and handling requirements are confirmed.
Fumigation-free pallets
Plywood or pressed-wood pallets can be used where ISPM-15 marking is not wanted.
Inner poly bags
Items can be bagged before cartoning to limit moisture and loose parts in transit.
Buyer branding and labels
Available after artwork, label content, placement and the applicable minimum batch are agreed.
Frequently Asked Questions
What documented quality support is available for Countersunk Head Sleeve Anchor with Plastic Ring?
Documents: EN 10204 3.1 material certificate, Dimensional inspection report, Certificate of conformity. Confirm the required scope and acceptance criteria in the quotation.
Which order and delivery details are already confirmed for Countersunk Head Sleeve Anchor with Plastic Ring?
Confirmed packing options include Bulk carton packing, Small boxes with outer cartons, Palletized shipment, Fumigation-free pallets, Inner poly bags, Buyer branding and labels.
What information should be included in a quotation request for Countersunk Head Sleeve Anchor with Plastic Ring?
Provide the diameter or size, length, material, quantity, delivery destination. Include the drawing revision or sample reference.
