6mm x 30
Model6X30
dNominal Diameter · mm6 mm
Lengthmm30
d0Drill Diameter · mm6
hnomNominal Anchorage Depth · mm25
tfixFixture Thickness (max) · mm5
Anchors & Fixings

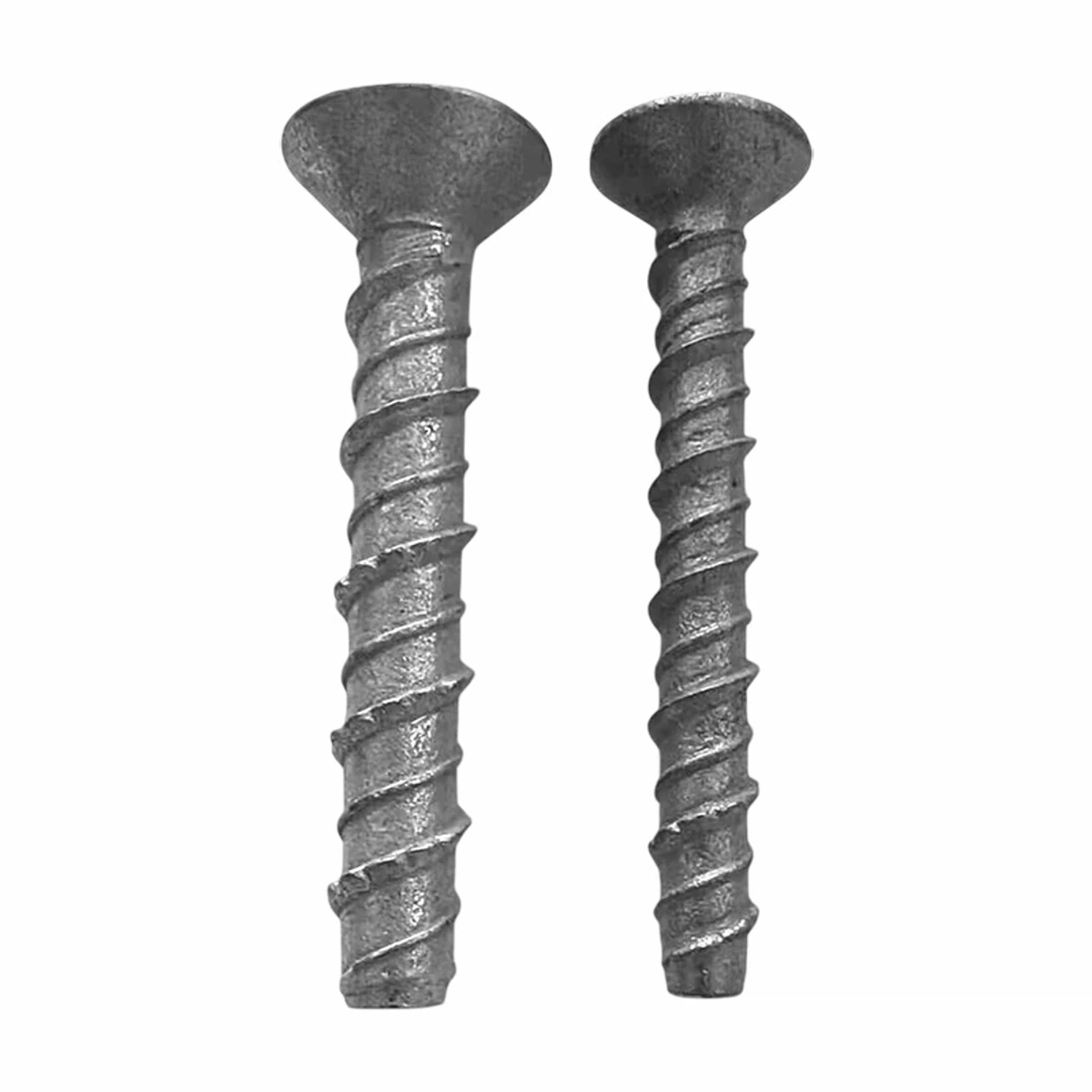

Countersunk Head Concrete Screw
6 mm–16 mm · Carbon Steel
● Available for quotation
- Material
- Carbon Steel
- Material Grade
- 10B21 Boron Steel
Share
Available options
Material
20 sizes
| Model | dNominal Diameter · mm | Lengthmm | d0Drill Diameter · mm | hnomNominal Anchorage Depth · mm | tfixFixture Thickness (max) · mm | Quantity and inquiry |
|---|---|---|---|---|---|---|
| 6X30 | 6 mm | 30 | 6 | 25 | 5 | |
| 6X50 | 6 mm | 50 | 6 | 25 | 25 | |
| 6X60 | 6 mm | 60 | 6 | 50 | 10 | |
| 6X75 | 6 mm | 75 | 6 | 50 | 25 | |
| 6X100 | 6 mm | 100 | 6 | 50 | 50 | |
| 8X50 | 8 mm | 50 | 8 | 45 | 5 | |
| 8X60 | 8 mm | 60 | 8 | 45 | 15 | |
| 8X75 | 8 mm | 75 | 8 | 65 | 10 | |
| 8X80 | 8 mm | 80 | 8 | 65 | 15 | |
| 8X100 | 8 mm | 100 | 8 | 65 | 35 | |
| 10X60 | 10 mm | 60 | 10 | 55 | 5 | |
| 10X75 | 10 mm | 75 | 10 | 55 | 20 | |
| 10X100 | 10 mm | 100 | 10 | 55 | 45 | |
| 10X120 | 10 mm | 120 | 10 | 75 | 45 | |
| 10X140 | 10 mm | 140 | 10 | 75 | 65 | |
| 12X75 | 12 mm | 75 | 12 | 70 | 5 |
6mm x 50
Model6X50
dNominal Diameter · mm6 mm
Lengthmm50
d0Drill Diameter · mm6
hnomNominal Anchorage Depth · mm25
tfixFixture Thickness (max) · mm25
6mm x 60
Model6X60
dNominal Diameter · mm6 mm
Lengthmm60
d0Drill Diameter · mm6
hnomNominal Anchorage Depth · mm50
tfixFixture Thickness (max) · mm10
6mm x 75
Model6X75
dNominal Diameter · mm6 mm
Lengthmm75
d0Drill Diameter · mm6
hnomNominal Anchorage Depth · mm50
tfixFixture Thickness (max) · mm25
6mm x 100
Model6X100
dNominal Diameter · mm6 mm
Lengthmm100
d0Drill Diameter · mm6
hnomNominal Anchorage Depth · mm50
tfixFixture Thickness (max) · mm50
8mm x 50
Model8X50
dNominal Diameter · mm8 mm
Lengthmm50
d0Drill Diameter · mm8
hnomNominal Anchorage Depth · mm45
tfixFixture Thickness (max) · mm5
8mm x 60
Model8X60
dNominal Diameter · mm8 mm
Lengthmm60
d0Drill Diameter · mm8
hnomNominal Anchorage Depth · mm45
tfixFixture Thickness (max) · mm15
8mm x 75
Model8X75
dNominal Diameter · mm8 mm
Lengthmm75
d0Drill Diameter · mm8
hnomNominal Anchorage Depth · mm65
tfixFixture Thickness (max) · mm10
8mm x 80
Model8X80
dNominal Diameter · mm8 mm
Lengthmm80
d0Drill Diameter · mm8
hnomNominal Anchorage Depth · mm65
tfixFixture Thickness (max) · mm15
8mm x 100
Model8X100
dNominal Diameter · mm8 mm
Lengthmm100
d0Drill Diameter · mm8
hnomNominal Anchorage Depth · mm65
tfixFixture Thickness (max) · mm35
10mm x 60
Model10X60
dNominal Diameter · mm10 mm
Lengthmm60
d0Drill Diameter · mm10
hnomNominal Anchorage Depth · mm55
tfixFixture Thickness (max) · mm5
10mm x 75
Model10X75
dNominal Diameter · mm10 mm
Lengthmm75
d0Drill Diameter · mm10
hnomNominal Anchorage Depth · mm55
tfixFixture Thickness (max) · mm20
10mm x 100
Model10X100
dNominal Diameter · mm10 mm
Lengthmm100
d0Drill Diameter · mm10
hnomNominal Anchorage Depth · mm55
tfixFixture Thickness (max) · mm45
10mm x 120
Model10X120
dNominal Diameter · mm10 mm
Lengthmm120
d0Drill Diameter · mm10
hnomNominal Anchorage Depth · mm75
tfixFixture Thickness (max) · mm45
10mm x 140
Model10X140
dNominal Diameter · mm10 mm
Lengthmm140
d0Drill Diameter · mm10
hnomNominal Anchorage Depth · mm75
tfixFixture Thickness (max) · mm65
12mm x 75
Model12X75
dNominal Diameter · mm12 mm
Lengthmm75
d0Drill Diameter · mm12
hnomNominal Anchorage Depth · mm70
tfixFixture Thickness (max) · mm5
Product description
Countersunk Head Concrete Screw is listed as a metric factory-series product using the dimensions supplied in the customer's original XTANCHOR catalogue. The specification table preserves factory item codes where provided and separates product size from drilling and installation dimensions. The supplier's duplicated metric tfix column has been restored as screw length minus nominal anchorage depth. No load rating, approval, coating or performance claim is inferred from the product photograph.
Key features
- Metric-only catalogue specifications
- Factory item codes retained where supplied
- Dimensions separated by engineering meaning
Applications
- Concrete, masonry and general construction fastening where the selected size and installation parameters are suitable.
Standard and order documents
The selected execution standard is the product basis. Published or order-specific documents are shown only when they have been confirmed for this product.
Order assurance
Available options; exact scope is fixed in the quotation or order.EN 10204 3.1 material certificate
Can be included when agreed in the order.
Dimensional inspection report
Can be provided for the agreed inspection scope.
Certificate of conformity
Can be issued against the confirmed order requirements.
Mechanical test report
Available when the required tests are agreed before production.
Chemical analysis report
Available when the material verification scope is agreed.
Batch and lot traceability
Batch or lot references can be recorded for the order; heat references are included only where applicable and available.
Bulk carton packing
Available subject to confirmed piece weight and shipping requirements.
Small boxes with outer cartons
Available when the box quantity and labels are agreed.
Palletized shipment
Available when pallet size and handling requirements are confirmed.
Fumigation-free pallets
Plywood or pressed-wood pallets can be used where ISPM-15 marking is not wanted.
Inner poly bags
Items can be bagged before cartoning to limit moisture and loose parts in transit.
Buyer branding and labels
Available after artwork, label content, placement and the applicable minimum batch are agreed.
Frequently Asked Questions
What documented quality support is available for Countersunk Head Concrete Screw?
Documents: EN 10204 3.1 material certificate, Dimensional inspection report, Certificate of conformity. Confirm the required scope and acceptance criteria in the quotation.
Which order and delivery details are already confirmed for Countersunk Head Concrete Screw?
Confirmed packing options include Bulk carton packing, Small boxes with outer cartons, Palletized shipment, Fumigation-free pallets, Inner poly bags, Buyer branding and labels.
What information should be included in a quotation request for Countersunk Head Concrete Screw?
Provide the diameter or size, length, material, property class or grade, quantity, delivery destination. Include the drawing revision or sample reference.
