M6 × 6
d · mmM6
l · mm6
P · mm1
s · mm10
e · mm11.05
k · mm4
Weight · kg/10003.74
螺栓

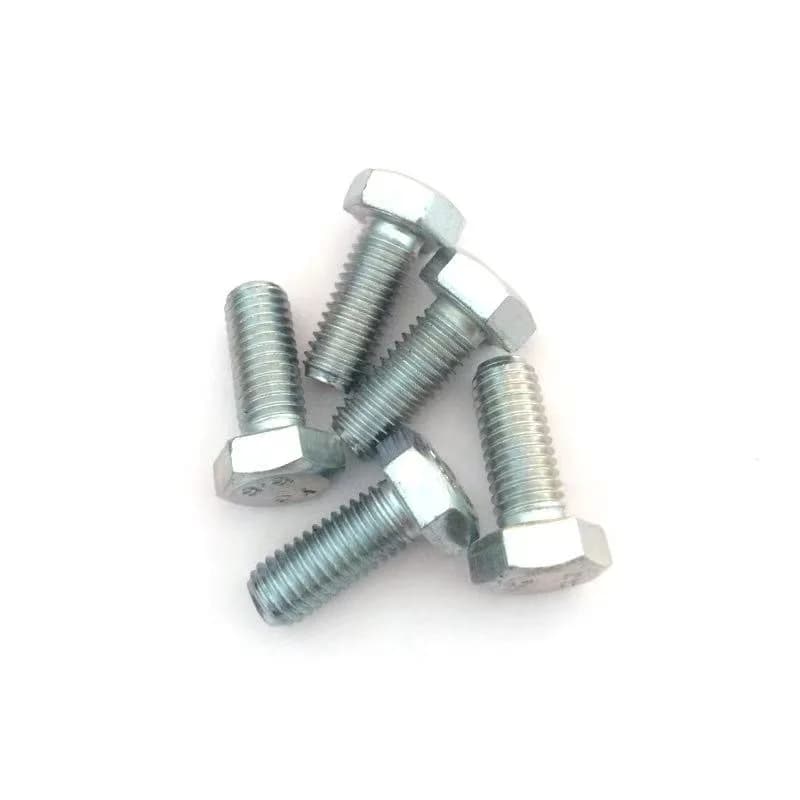

DIN 933 Hexagon Head Bolt
DIN 933 hexagon head bolt in carbon steel with galvanized finish.
● Available for quotation
- Standard
- DIN 933 (Historical)
- Head Form
- Hexagon Head
- Property Class
- 4.8
- Finish
- Galvanized
- Thread Type
- Full Thread
Share
| d · mm | l · mm | P · mm | s · mm | e · mm | k · mm | Weight · kg/1000 | Quantity / Add |
|---|---|---|---|---|---|---|---|
| M6 | 6 | 1 | 10 | 11.05 | 4 | 3.74 | |
| M6 | 8 | 1 | 10 | 11.05 | 4 | 4.15 | |
| M6 | 10 | 1 | 10 | 11.05 | 4 | 4.57 | |
| M6 | 12 | 1 | 10 | 11.05 | 4 | 4.98 | |
| M6 | 16 | 1 | 10 | 11.05 | 4 | 5.80 | |
| M6 | 20 | 1 | 10 | 11.05 | 4 | 6.63 | |
| M6 | 25 | 1 | 10 | 11.05 | 4 | 7.66 | |
| M6 | 30 | 1 | 10 | 11.05 | 4 | 8.69 | |
| M6 | 35 | 1 | 10 | 11.05 | 4 | 9.73 | |
| M6 | 40 | 1 | 10 | 11.05 | 4 | 10.76 | |
| M6 | 45 | 1 | 10 | 11.05 | 4 | 11.79 | |
| M6 | 50 | 1 | 10 | 11.05 | 4 | 12.82 | |
| M6 | 55 | 1 | 10 | 11.05 | 4 | 13.85 | |
| M6 | 60 | 1 | 10 | 11.05 | 4 | 14.89 | |
| M6 | 65 | 1 | 10 | 11.05 | 4 | 15.92 | |
| M6 | 70 | 1 | 10 | 11.05 | 4 | 16.95 |
M6 × 8
d · mmM6
l · mm8
P · mm1
s · mm10
e · mm11.05
k · mm4
Weight · kg/10004.15
M6 × 10
d · mmM6
l · mm10
P · mm1
s · mm10
e · mm11.05
k · mm4
Weight · kg/10004.57
M6 × 12
d · mmM6
l · mm12
P · mm1
s · mm10
e · mm11.05
k · mm4
Weight · kg/10004.98
M6 × 16
d · mmM6
l · mm16
P · mm1
s · mm10
e · mm11.05
k · mm4
Weight · kg/10005.80
M6 × 20
d · mmM6
l · mm20
P · mm1
s · mm10
e · mm11.05
k · mm4
Weight · kg/10006.63
M6 × 25
d · mmM6
l · mm25
P · mm1
s · mm10
e · mm11.05
k · mm4
Weight · kg/10007.66
M6 × 30
d · mmM6
l · mm30
P · mm1
s · mm10
e · mm11.05
k · mm4
Weight · kg/10008.69
M6 × 35
d · mmM6
l · mm35
P · mm1
s · mm10
e · mm11.05
k · mm4
Weight · kg/10009.73
M6 × 40
d · mmM6
l · mm40
P · mm1
s · mm10
e · mm11.05
k · mm4
Weight · kg/100010.76
M6 × 45
d · mmM6
l · mm45
P · mm1
s · mm10
e · mm11.05
k · mm4
Weight · kg/100011.79
M6 × 50
d · mmM6
l · mm50
P · mm1
s · mm10
e · mm11.05
k · mm4
Weight · kg/100012.82
M6 × 55
d · mmM6
l · mm55
P · mm1
s · mm10
e · mm11.05
k · mm4
Weight · kg/100013.85
M6 × 60
d · mmM6
l · mm60
P · mm1
s · mm10
e · mm11.05
k · mm4
Weight · kg/100014.89
M6 × 65
d · mmM6
l · mm65
P · mm1
s · mm10
e · mm11.05
k · mm4
Weight · kg/100015.92
M6 × 70
d · mmM6
l · mm70
P · mm1
s · mm10
e · mm11.05
k · mm4
Weight · kg/100016.95
Corresponding-standard values are shown only where dimensions differ. The selected product standard remains the primary specification.
264 Product Specifications
Page 1/17Next
Product description
This hexagon head bolt is manufactured to DIN 933. The product is made from carbon steel and features a galvanized finish. Dimensional specifications are provided for M6 diameter with a 1 mm pitch, across lengths from 6 mm to 110 mm. The head dimensions include a width across flats (s) of 10 mm, a width across corners (e) of 11.05 mm, and a head height (k) of 4 mm. These bolts are suitable for general mechanical applications where a standard hex head and metric coarse thread are required. Custom specifications may be available upon request.
Key features
- Manufactured to DIN 933
- Carbon steel material
- Galvanized finish
- M6 diameter with 1 mm pitch
Related Products
Frequently Asked Questions
What standards and sizes are available for DIN 933 Hexagon Head Bolt?
Available execution standards include DIN 933, DIN 933 / ISO 4017. The confirmed specification table covers M6–M48 diameters and 6–150 mm lengths. Use the specification table to select the exact variant required for quotation.
What materials and product options are available for DIN 933 Hexagon Head Bolt?
Material: Carbon steel; Finish: Galvanized; Property Class: 4.8. Availability should be confirmed against the selected specification and order quantity.
What information should be included in a quotation request for DIN 933 Hexagon Head Bolt?
Please provide the required standard, diameter or size, length, property class or grade, finish, quantity, delivery destination. A drawing or sample reference is useful when the requirement is non-standard.
